Product Description

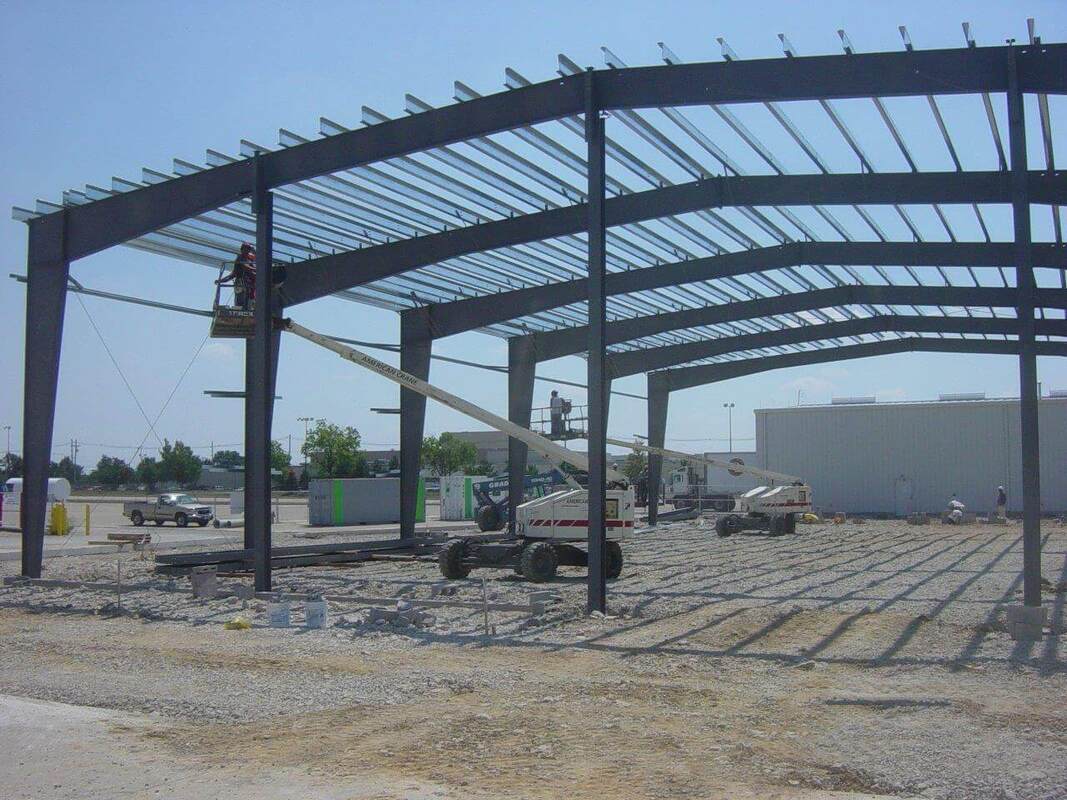

A Tapered Column Primary Steel Frame is an optimized and cost-effective structural system characterized by columns with tapered cross-sections (wider at the base, narrower at the top), engineered to match stress distribution, reduce material consumption, and enhance architectural aesthetics. Manufactured with Q355B/Q460 high-strength steel (tapered columns, I-beam beams) and Q355B connection plates, this product features tapered columns (box-section or H-beam, base size: 400×300mm to 800×400mm, top size: 250×200mm to 500×300mm) designed via finite element analysis to align with vertical load and bending moment distribution—maximizing strength at the base (highest stress) while minimizing weight at the top. The main beams adopt I-shaped cross-sections (300×150mm to 700×300mm) with yield strength ≥345MPa, and rigid bolt-welded joints between beams and columns ensure efficient force transmission, limiting vertical deflection to ≤L/500 (L=span length) and lateral displacement to ≤H/600 (H=frame height). Key features include material savings of 15-25% compared to straight columns (due to tapered design), improved structural stability (lower center of gravity), and sleek architectural appearance (tapered columns complement modern building styles). The surface is treated with hot-dip galvanizing, fluorocarbon coating, or weathering steel finish, providing salt spray resistance ≥1200 hours and adapting to urban, coastal, and industrial environments. It complies with GB 50017-2017 and AISC 360 structural standards, supporting span customization (12m-30m) and taper angle adjustment (5°-15°) to meet project requirements. Professional services include stress distribution simulation, tapered section optimization, BIM-based design integration, and on-site installation supervision, ensuring the frame balances performance, cost, and aesthetics.
Applications
Tapered Column Primary Steel Frames are ideal for projects requiring cost optimization, structural efficiency, and architectural appeal, widely used in commercial, public, and industrial buildings. Certified by GB 50017-2017, AISC 360, and ISO 9001, they meet strict structural and aesthetic standards. Typical applications include commercial buildings (office towers, shopping malls, hotel lobbies), public buildings (museums, theaters, exhibition centers), industrial workshops (modern factories with architectural requirements), high-end residential buildings (villas, lofts), and urban landmarks (gateway structures, pavilion buildings). They are particularly suitable for projects where architectural design and cost control are equally important—such as city center commercial complexes and cultural buildings. The minimum order quantity is 1 set (customized per project), with full tailoring based on column taper size, span length, and load conditions. Competitive project-based pricing and flexible delivery terms (20-35 workdays based on complexity) support design-driven construction schedules, while a monthly supply capacity of 50 project sets ensures timely delivery. Customization options include corrosion-resistant upgrades (316L stainless steel, weathering steel) for coastal or industrial environments, fire-resistant coating (fire resistance ≥2 hours) for public buildings, and ultra-high-strength Q690 steel for large-span projects (≥24m) to further reduce column size.
