Product Description

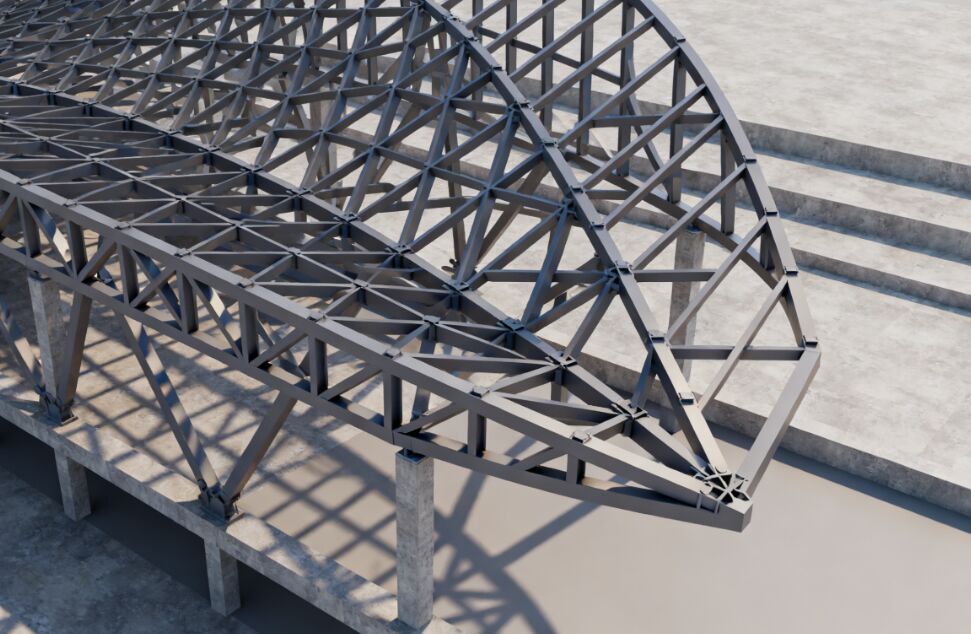

A Special-Shaped Bracing Frame is a customized and high-performance structural system designed to adapt to irregular architectural layouts and complex force conditions, integrating load-bearing, anti-seismic, and space-optimization functions. Manufactured with Q355B/Q460 high-strength steel (bracing members) and Q235B/Q355B steel plates (connection nodes), this product features a non-standard geometric design (e.g., curved, inclined, multi-segmental) tailored to specific building shapes, such as irregularly shaped commercial complexes, cultural venues, and high-rise buildings with unique facades. One of the key features of this frame is its optimized force transmission path—through finite element analysis (FEA) and BIM modeling, the bracing members are designed to distribute lateral loads (wind, seismic force) and vertical loads evenly, avoiding stress concentration and improving structural stability. The bracing members adopt H-beam, box-section, or pipe steel (customizable based on load requirements), with a yield strength ≥345MPa, ensuring excellent anti-seismic performance (suitable for seismic intensity zones 7-9 degrees) and lateral stiffness (lateral displacement ≤H/500, H=frame height). Connection nodes between bracing members and the main structure use high-strength bolted connections or hybrid bolt-welded connections, with factory prefabrication rate ≥90% to ensure component precision (dimension error ≤±1mm) and reduce on-site construction time by 50% compared to traditional bracing systems. The surface is treated with hot-dip galvanizing, fluorocarbon paint, or weathering steel finish, providing corrosion resistance (salt spray resistance ≥1200 hours) and adapting to indoor, outdoor, and coastal environments. It complies with GB 50017-2017, AISC 341, and EN 1998 anti-seismic standards, supporting customization of cross-section size (100×100mm to 500×500mm), bracing angle (30°-60°), and geometric shape (curved, 折线,multi-branch) to match architectural design needs. Professional services include structural optimization design, seismic performance simulation, on-site installation supervision, and load-bearing capacity testing, ensuring the frame integrates perfectly with the overall building structure while meeting safety and aesthetic requirements.
Applications

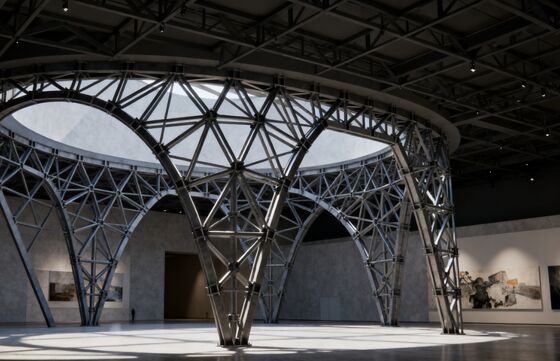

Special-Shaped Bracing Frames are high-customization structural systems widely used in irregular and high-end architectural projects, where traditional linear bracing cannot adapt to complex layouts. Certified by GB 50017-2017, AISC 341, and ISO 9001, they meet strict structural and anti-seismic standards, ensuring reliable performance in complex force scenarios. These frames are suitable for diverse applications, including irregularly shaped commercial complexes (curved facades, multi-angle layouts), cultural buildings (museums, theaters, exhibition centers with unique architectural forms), high-rise residential and office buildings with non-linear facades, transportation hubs (airport terminals, railway stations with large-span irregular spaces), industrial plants with special process layouts (e.g., curved production lines), and seismic retrofitting of old irregular structures. They are particularly critical for projects where architectural aesthetics and structural safety are equally important, such as landmark buildings and urban skyline projects. The minimum order quantity is 1 set (customized per project), and solutions are fully tailored based on architectural drawings, load requirements, and seismic grades. Competitive pricing for project-based customization and flexible delivery terms (15-45 workdays based on complexity) support high-end and complex construction schedules. With a monthly supply capacity of 50 project sets, the manufacturer ensures timely delivery and professional technical support for large-scale and complex projects. The high-strength steel material and premium anti-corrosion treatment ensure durability in urban, coastal, and industrial environments, from humid coastal cities to dry inland regions. Customization options also include weathering steel for rust-patina architectural effects, fire-resistant coating upgrades (fire resistance ≥2 hours) for fire-critical buildings, and lightweight high-strength alloy steel for large-span lightweight structures. Whether it's for new complex architectural construction or old irregular structure reinforcement, the Special-Shaped Bracing Frame delivers customized, safe, and aesthetically compatible structural performance.
